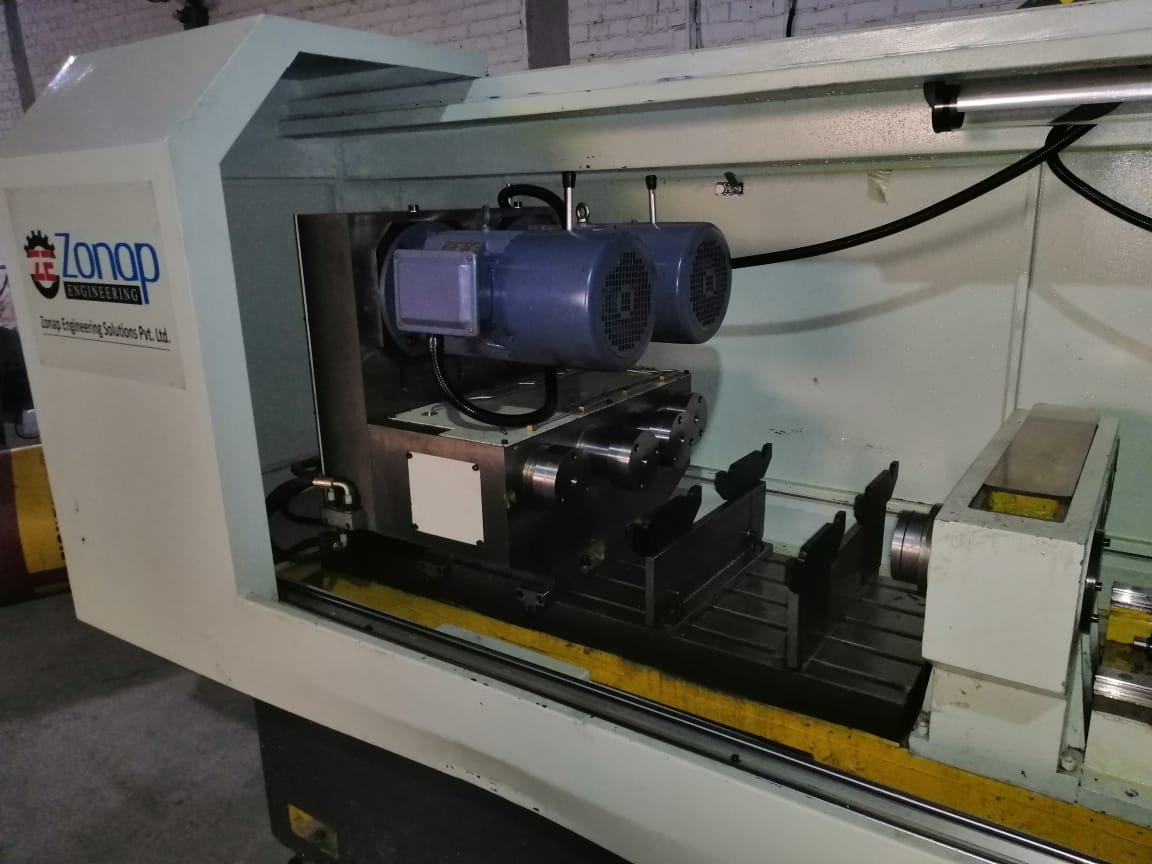

Multi Spindle Gun Drilling Machine
Zonap’s Multispindle Deep Hole Drilling Machine is engineered for manufacturers who demand the highest productivity without sacrificing accuracy. Inspired by global leaders in deep hole drilling technology, this machine allows multiple spindles to drill simultaneously—cutting cycle time dramatically and multiplying output per shift. Designed for high-volume production environments, this machine delivers consistent straightness, surface finish, and repeatability even when multiple holes are drilled at the same time. From automotive and hydraulics to oil & gas and precision engineering, Zonap’s multispindle platform turns deep hole drilling into a high-speed, high-profit process. Multiple variants are available across different machine sizes and configurations to match varied drilling diameters, depths, and production requirements.
Key Features
- High-pressure coolant system for efficient chip removal.
- Parallel drilling with multiple spindles in a single cycle
- Massive reduction in cycle time per component
- Higher output without increasing manpower
- Uniform accuracy across all drilled holes
- Lower cost per hole and faster ROI
- Ideal for serial and mass production environments
- Rigid industrial structure for vibration-free drilling
- Precision guide bush system for straight deep holes
- High-speed spindles for small and medium diameters
- High-pressure coolant system for chip evacuation
- Scalable from 1 to 4 spindles
- Automation-ready for robotic loading and unloading
- Automotive shafts, pins, and transmission parts
- Hydraulic and pneumatic components
- Heat exchanger and tube plates
- Oil & gas tubular parts
- Defence and aerospace precision components
- Industrial mass-production components
Technical Specifications
| Feature | 1 Spindle | 2 Spindle | 3 Spindle | 4 Spindle |
|---|---|---|---|---|
| Number of Spindles | 1 | 2 | 3 | 4 |
| Drilling Diameter Range | Ø3 – Ø30 mm | Ø3 – Ø30 mm | Ø3 – Ø30 mm | Ø3 – Ø30 mm |
| Max. Drilling Length | 600 – 2000 mm | 600 – 2000 mm | 600 – 2000 mm | 600 – 2000 mm |
| Drilling System | Gun Drilling | Gun Drilling | Gun Drilling | Gun Drilling |
| Max. Spindle Speed | Up to 6000 RPM | Up to 6000 RPM | Up to 6000 RPM | Up to 6000 RPM |
| Feed Rate | Up to 5000 mm/min | Up to 5000 mm/min | Up to 5000 mm/min | Up to 5000 mm/min |
| Spindle Motor Power | 5 – 7.5 kW | 2 × (5 – 7.5 kW) | 3 × (5 – 7.5 kW) | 4 × (5 – 7.5 kW) |
| Coolant Pressure | Up to 80 bar | Up to 80 bar | Up to 80 bar | Up to 80 bar |
| Coolant Flow Rate | 60 – 120 L/min | 80 – 150 L/min | 100 – 180 L/min | 120 – 220 L/min |
| Guide Bush System | Standard | Standard | Standard | Standard |
| Control System | PLC / CNC Optional | PLC / CNC Optional | PLC / CNC Optional | PLC / CNC Optional |
| Automation Ready | Yes | Yes | Yes | Yes |
| Typical Use | Prototype / Low Volume | Medium Volume | High Volume | Mass Production |
